iGaging 6" Precision Combo Square with EM Imperial and Metric Measurements

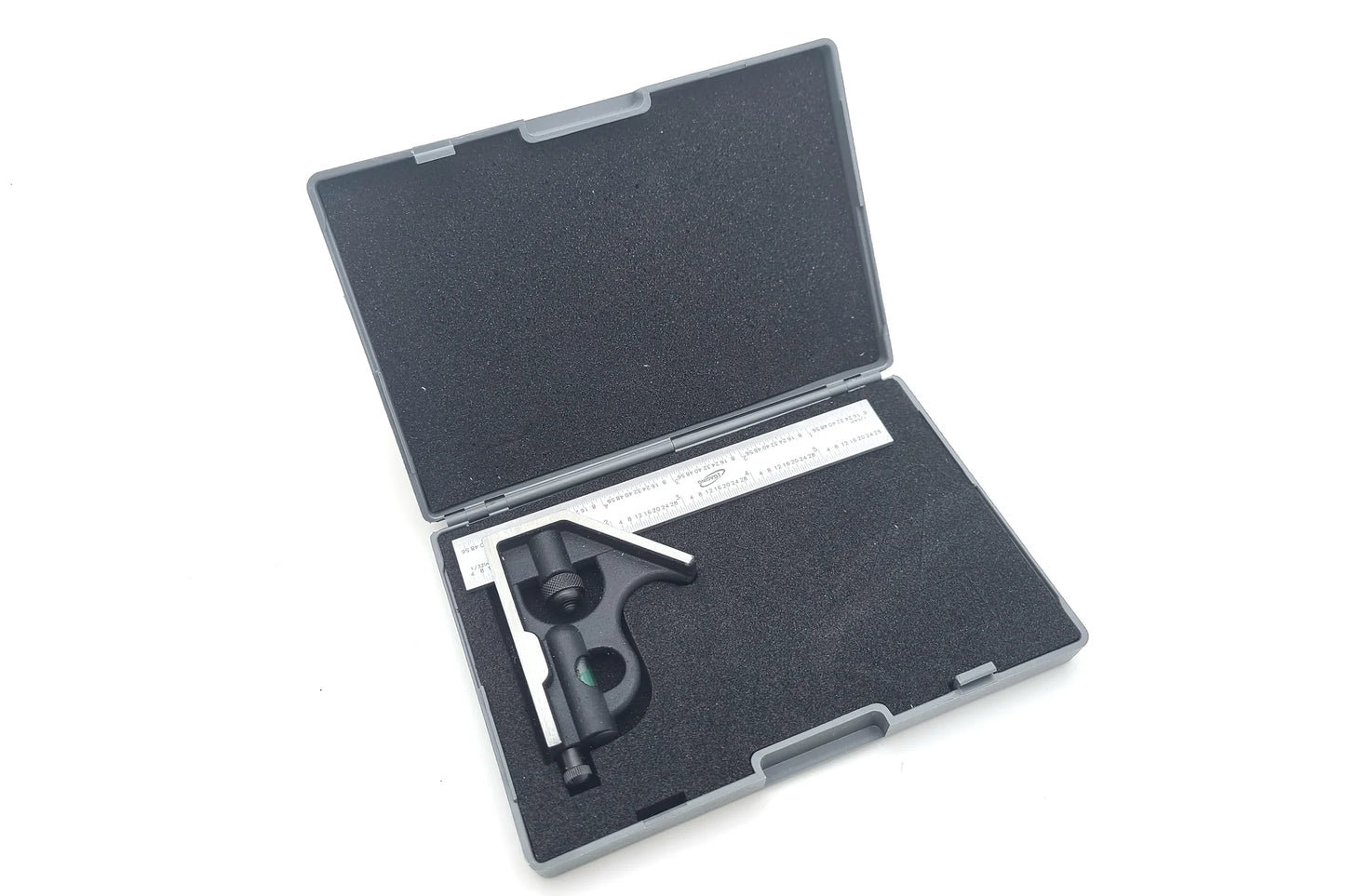

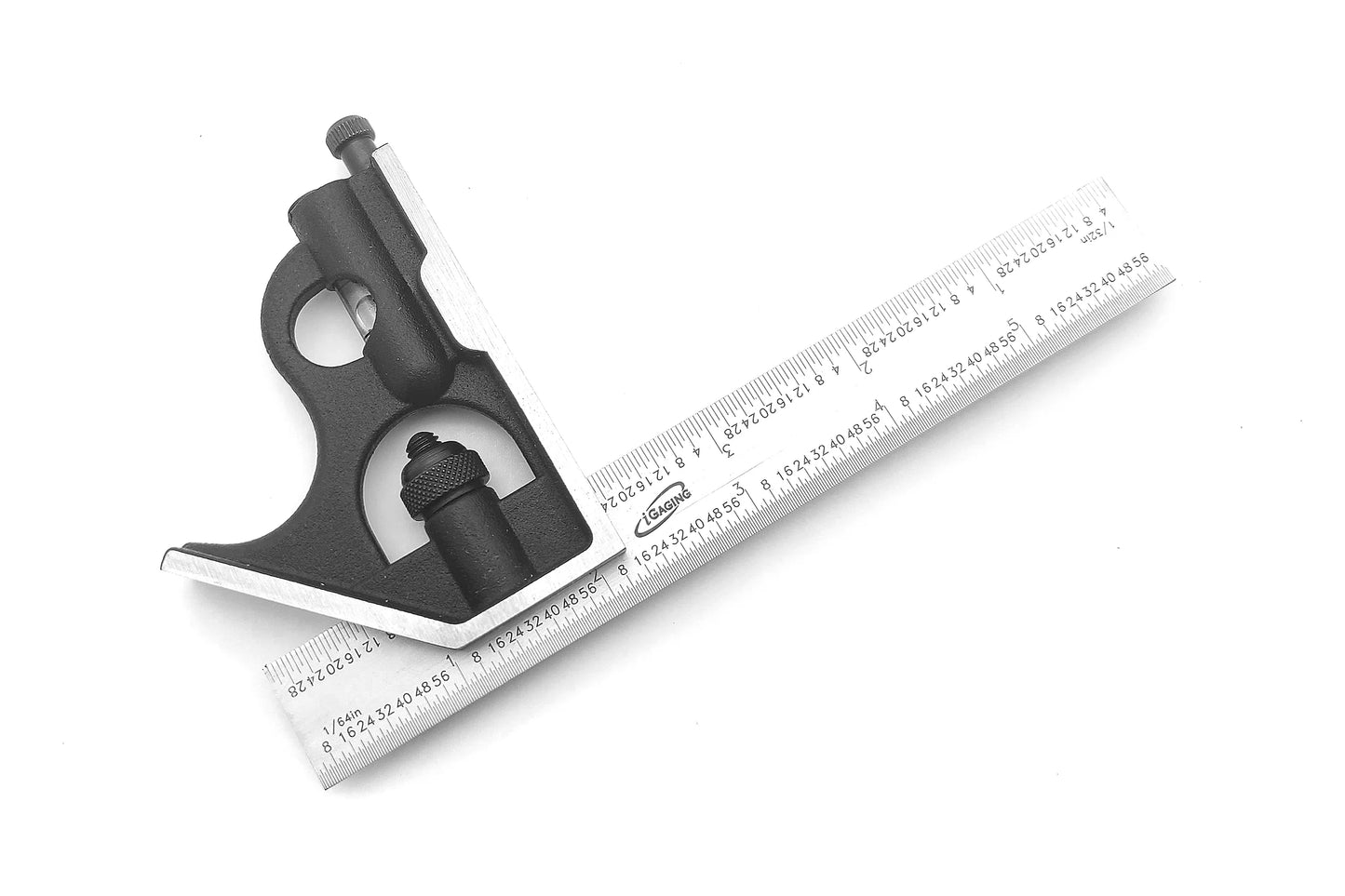

These compact 6” combination squares are indispensable for performing a host of shop measuring and layout tasks. They fit nicely in the hand and slip in an apron pocket. The combination head works as both 90 and 45 degree references. They feature hardened, tempered steel blades with a satin-chrome finish that reduce glare and resists rust. The blade markings are precision laser-etched with quick-reading EM inch/metric markings with graduations in 1mm,  64th, 32nd, and ½mm.  The square heads are cast, precision-machined and have a baked-on black finish. The heads lock down tight via a locking knob. Heads come with a steel scribing pin and built-in bubble level. Guaranteed square within 0.004” per 6”.  Comes fitted in a padded storage case.

Specifications:

• Head: 3-3/8” x 2-3/8” x 5/8”
• Blade: 6” x 0.800” x 0.085”
