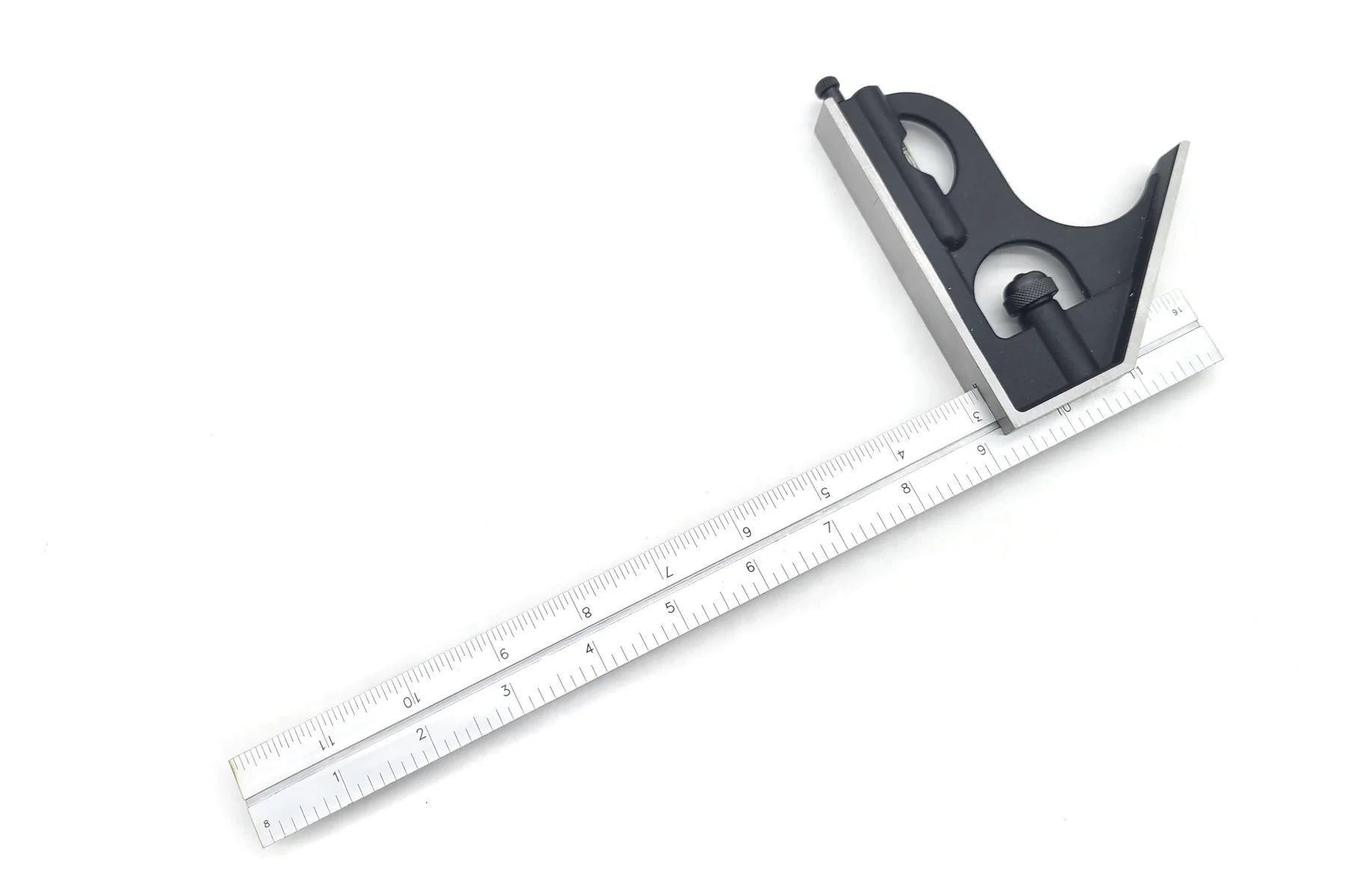

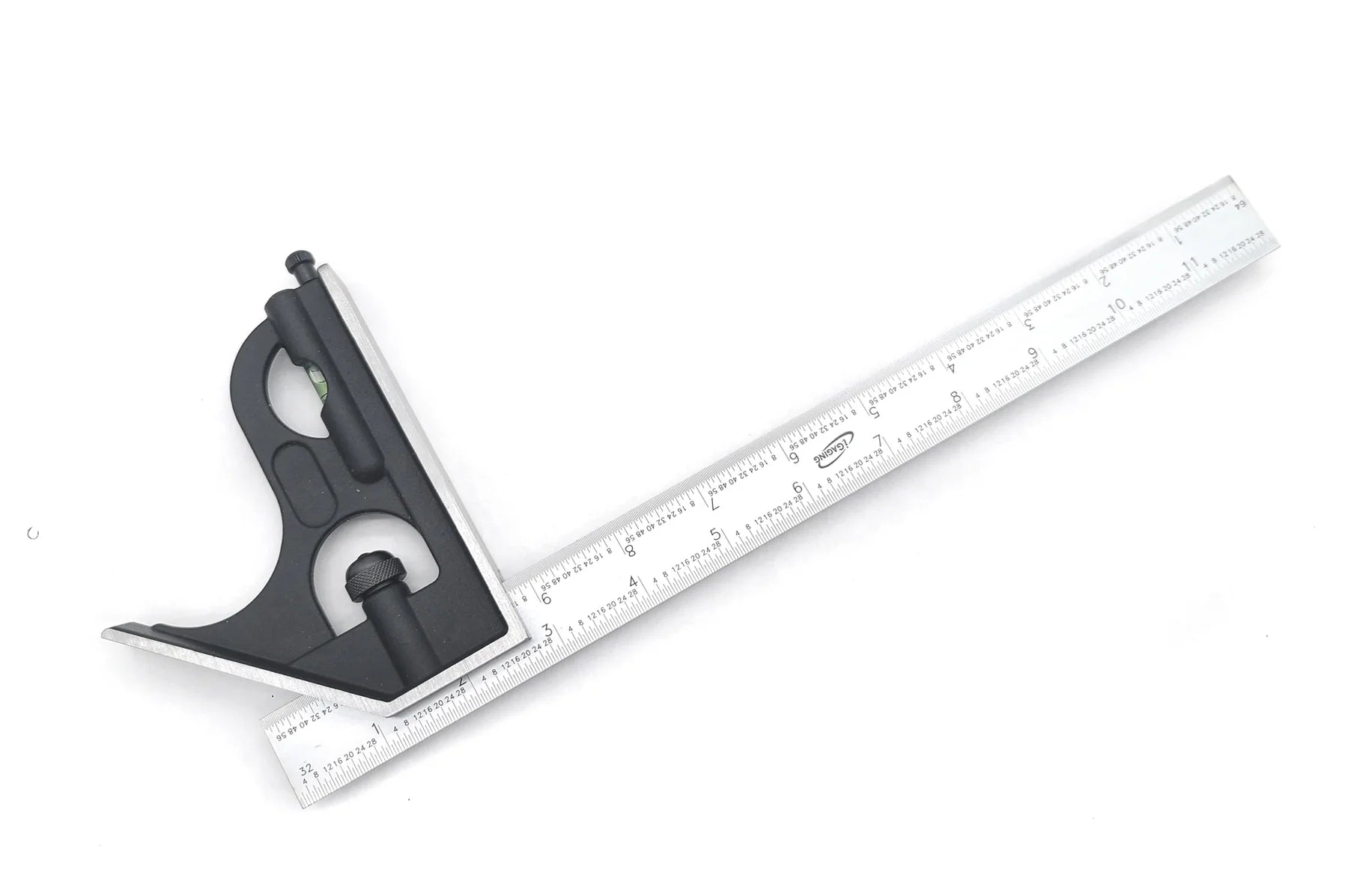

iGaging 12" Precision Combo Square with 1/8", 1/16", 1/32 and 1/64" Graduations

These precision 2-piece combination squares are perfect for project/part layout, machine setup, determining level/plumb, or as a depth, height, or marking gauge. This type of square is widely used by metal and woodworkers alike. They are manufactured in accordance with the derived tolerances from FEDERAL SPECIFICATION NO. GGG-S-656c and guaranteed to be square to within 0.005" (five thousandths of an inch) over the length of the 12" blade.

Blade: Has a hardened and tempered no-glare satin chrome-finished steel blade. Blade markings are precision laser-etched for easy readability. Graduations are in 1/64ths, 1/32nds, 1/16ths, and 1/8ths. The blade measures 12” x 1” x 0.080”.

Square head: Precision machined and lapped cast iron head with a black baked-on finish contains an integrated spirit level and hardened steel scribe. The size is 5” x 3-5/8” x 3/4”.

Complete set comes packaged in a plastic case with foam cutouts.
