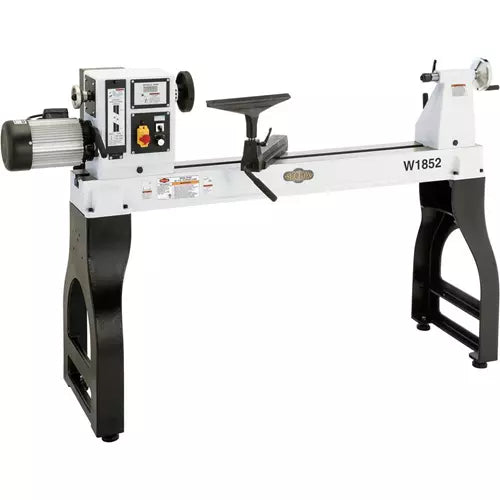

22x42" Variable Speed Wood Lathe

A large capacity wood lathe with variable frequency drive.

Wood turners who enjoy making large bowls, vases, furniture pieces, and other large-diameter projects require power, capacity and high-torque to meet their performance needs.

You get all three and then some with this burly lathe that weighs in at over a quarter-of-a-ton.

The 3 hp Delta single-phase frequency drive provides 3-phase variable speed control with single-phase power supply (VFD). The VFD saves you money by increasing the efficiency of the motor and decreasing electricity use. It reduces wear and tear on the motor which extends the life of the lathe.

With 22" of swing,and 1-1/4" x 8 TPI RH spindle, this lathe delivers the goods to gratify even the most discerning of turners.

The pulley belt configurations provide two speed ranges: 100–1200 RPM low and 330–3200 RPM high, perfect for both large and small turning projects and finishing.

Spindle speed is conveniently displayed on digital readout just above the speed control.

The W1852 manual was written by our U.S.-based Documentation Department is packed with useful information.

Parts for the lathe may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

ETL certified

SPECIFICATIONS:

• Motor: 3 HP, 240V, 3-phase (with inverter for single-phase power), 8A
• Required power supply: 240V, single-phase, 20A
• Inverter size & type: 3 HP Delta VFD-MS
• Swing over bed: 22"
• Swing over tool rest base: 18"
• Swing over tool rest: 16"
• Distance between centers: 42"
• Spindle speed: Variable, 100–3200 RPM
• Spindle threads: 1-1/4" x 8 TPI RH
• Spindle taper: MT#2
• Tailstock taper: MT#2
• Tailstock barrel travel: 4-1/4"
• Tool rest width: 14"
• Overall dimensions: 81" W x 23" D x 49-1/2" H
• Approximate shipping weight: 611 lbs.

FEATURES:

• Two-year warranty!!
• Electronic variable spindle speed control with digital readout
• Headstock positions anywhere along the bed
• 10° spindle indexing
• Single-phase frequency drive provides 3-phase variable-speed control and additional torque without requiring a 3-phase power supply
• Forward/reverse spindle control
• Includes spur center, cupped live center, knock-out tool, tool rest, 6" faceplate, and indexing pin
• Tailstock, headstock, and tool rest support have lever-action cam locks for quick positioning
