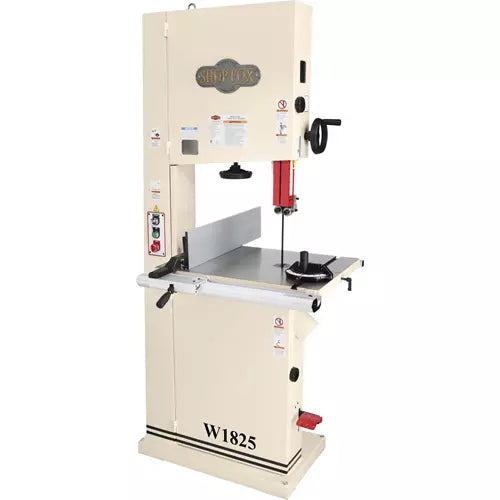

19" Heavy-Duty Bandsaw

Power, capacity, and extra features make this 19" Heavy-Duty Bandsaw the saw of choice for many serious woodworkers.

Included on the W1825 is an extra-wide table, deluxe 6" tall resaw fence that also converts to a low-profile fence, rack-and-pinion table tilt mechanism with built-in table support brace, cast-iron table trunnions, computer-balanced cast-iron wheels with polyurethane tires, and a foot brake.

The foot brake not only acts as a safety feature, but it can also speed production.

All-in-all, you would be hard-pressed to find a bandsaw with more useful features and proven performance than this outstanding machine.

Made in an ISO 9001 Factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 220V, single-phase, TEFC capacitor start-induction
• RPM: 1725
• Precision-ground cast-iron table size: 26-3/4" x 19" x 1-1/2" thick
• Floor to table height: 37-1/2"
• Cutting capacity/throat: 18-1/4"
• Maximum cutting height: 12"
• Blade length: 143"
• Blade length range: 141-1/2" - 143"
• Blade width range: 1/8" - 1-1/4"
• 2 Blade speeds: 1700, 3500 FPM
• Wheels: computer-balanced cast-iron with polyurethane tires
• Wheel covers: pre-formed, hinged steel
• Blade guides: dual ball bearings with full enclosure protection
• Motor bearings: sealed and permanently lubricated
• Table tilt: 5° left, 45° right
• Overall size: 36"W x 76"H x 32"D
• Approximate shipping weight: 500 lbs.

FEATURES:

• Two-year warranty!!
• Quick-change blade release/tensioning
• Blade tension indicator
• Rack-and-pinion table tilt mechanism
• Computer-balanced cast-iron wheels
• Height scale measurement
• Fence with scale and magnifying window
• Deluxe cast-iron fence with deluxe extruded-aluminum resaw fence
• Miter gauge
• Two 4" dust ports
• Rack-and-pinion upper guide adjustment
• Foot brake
• Cast-iron trunnion
• Key lockout safety switch
• Includes 3/4" hook-style blade
