10" Hybrid Table Saw w Riving Knife

A hybrid table saw with innovative features.

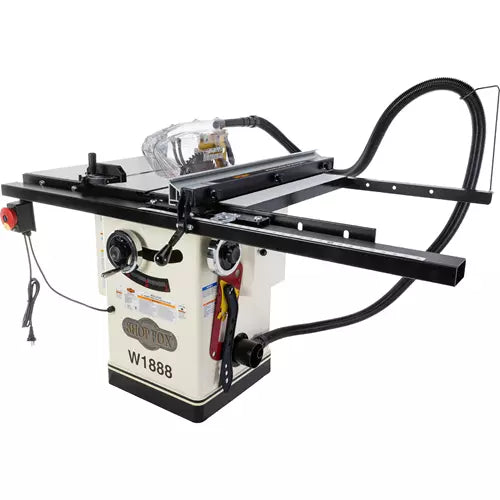

The W1888 10" Hybrid Table Saw from Shop Fox combines features of a cabinet-style table saw and a job site table saw.

Like a cabinet saw, it has a precision-ground cast-iron table, a cabinet-mounted cast-iron trunnion, and a Poly-V drive belt for reduced noise/vibration.

It is compact with a smaller footprint and has a price that’s significantly lower than a cabinet saw.

The W1888 efficiently collects sawdust in two capacities: off top through the dust port on the blade guard and below through the internal dust shroud. These merge just before the 4" dust port.

The easy-glide, two position fence system quickly converts for narrow ripping.

The 2 HP dual voltage motor is prewired for standard household power and will rip all day long.

This combination of features will beat all others in its class.

Like all Shop Fox table saws, the W1888 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1888 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts for the saw may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 2 HP, 115V/230V (prewired 115V), single-phase, 16A/8A
• Rip capacity: 31-1/2" right, 11-3/8" left of blade
• Max depth of cut at 90°: 3-1/8"
• Max depth of cut at 45°: 2-1/8"
• Table Size: 40-1/8" x 27"
• Distance from front of table to center of blade: 16-1/4"
• Floor-to-table height: 34-1/4"
• Arbor diameter: 5/8"
• Arbor speed: 4000 RPM
• Max width of dado: 13/16"
• Dust port size: 4"
• Footprint: 19-1/2" x 20-1/2"
• Overall dimensions: 66" W x 40" D x 48" H
• Approximate shipping weight: 449 lbs.

FEATURES:

• Two-year warranty!!
• Built-In dust port on blade guard
• Easy-glide fence system with micro-adjustment
• Deluxe 2-position aluminum rip fence
• Precision-ground cast-iron table
• Cabinet-mounted cast-iron trunnions
• Quick-release riving knife
• Heavy cast handwheels
• T-slot miter gauge
• 4" Dust port

*This machine is prewired for 115V operation. 230V operation requires purchase and installation of conversion kit X1888224X.
