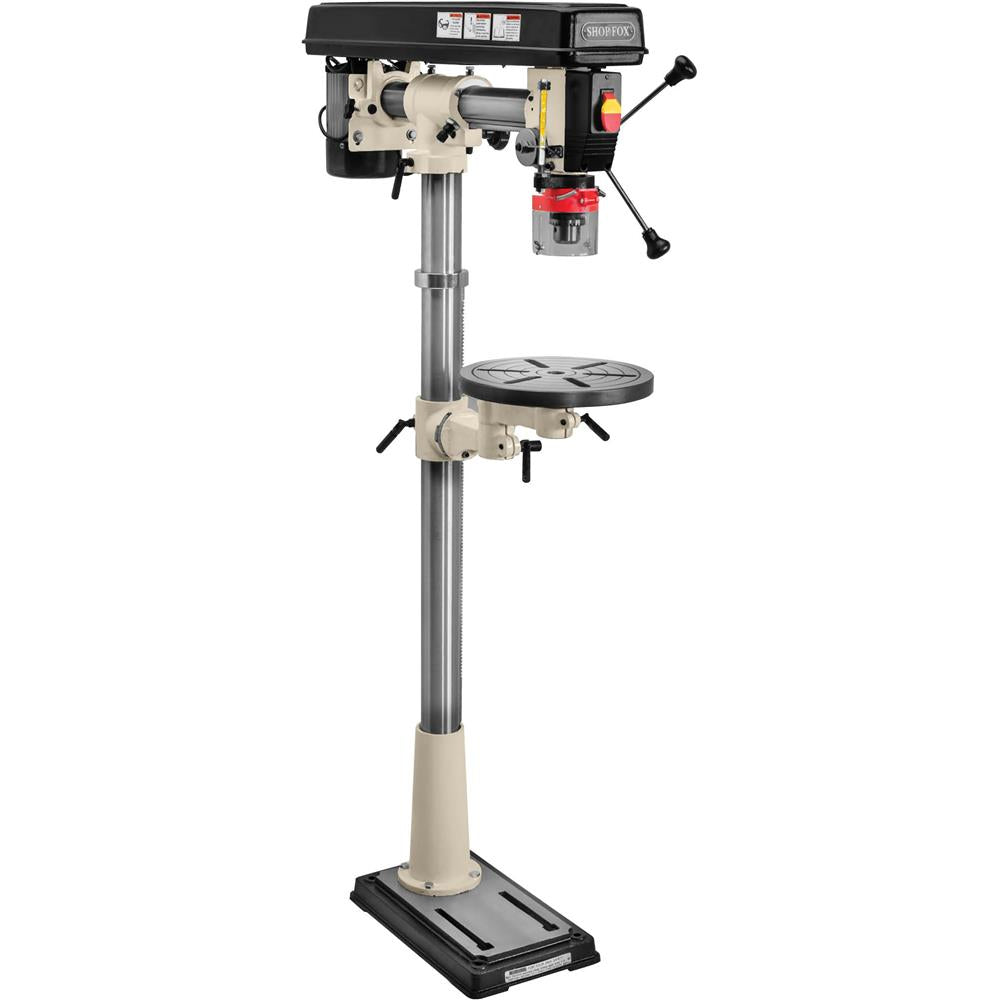

1/2HP 34" Floor Radial Drill Press

A tilting head benchtop drill press for adjustable angled drilling.

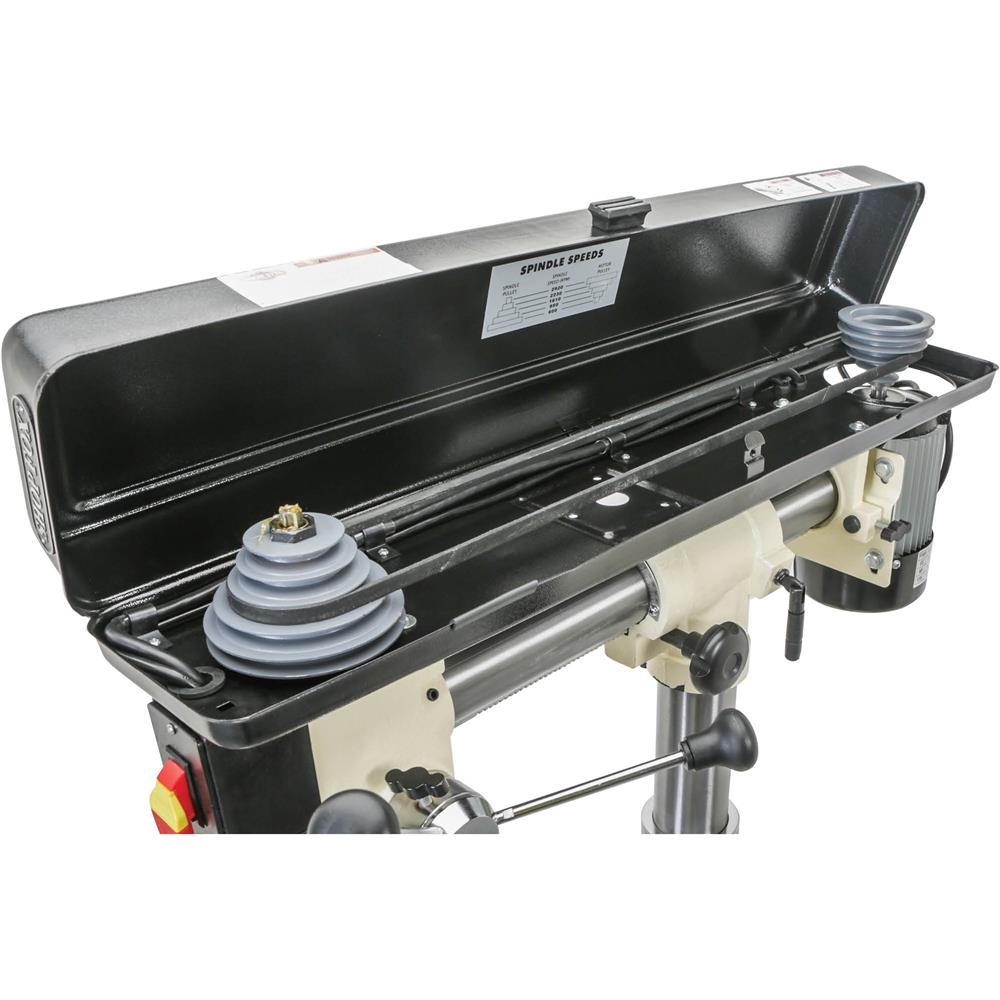

The Shop Fox W1670 34" Floor Radial Drill Press boasts a 1/2 HP motor that smoothly powers the five spindle speeds ranging from 550 to 3000 RPM.

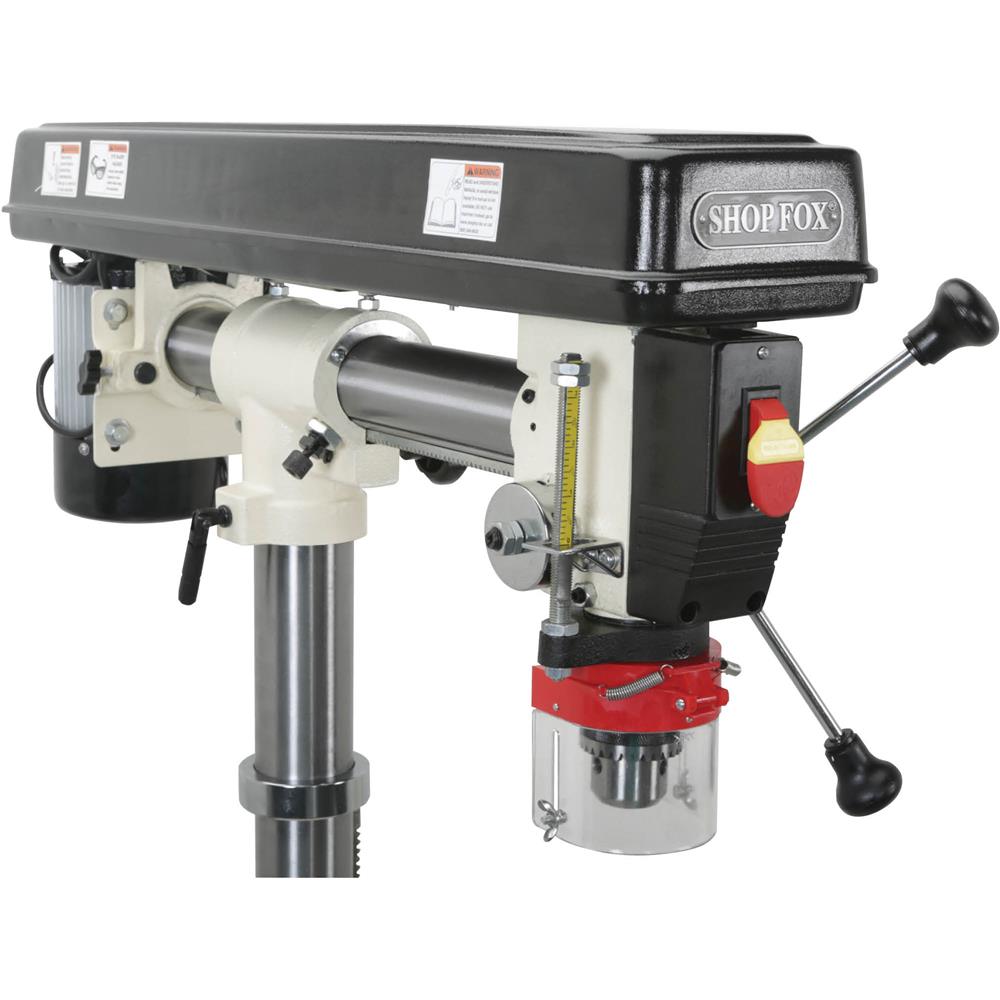

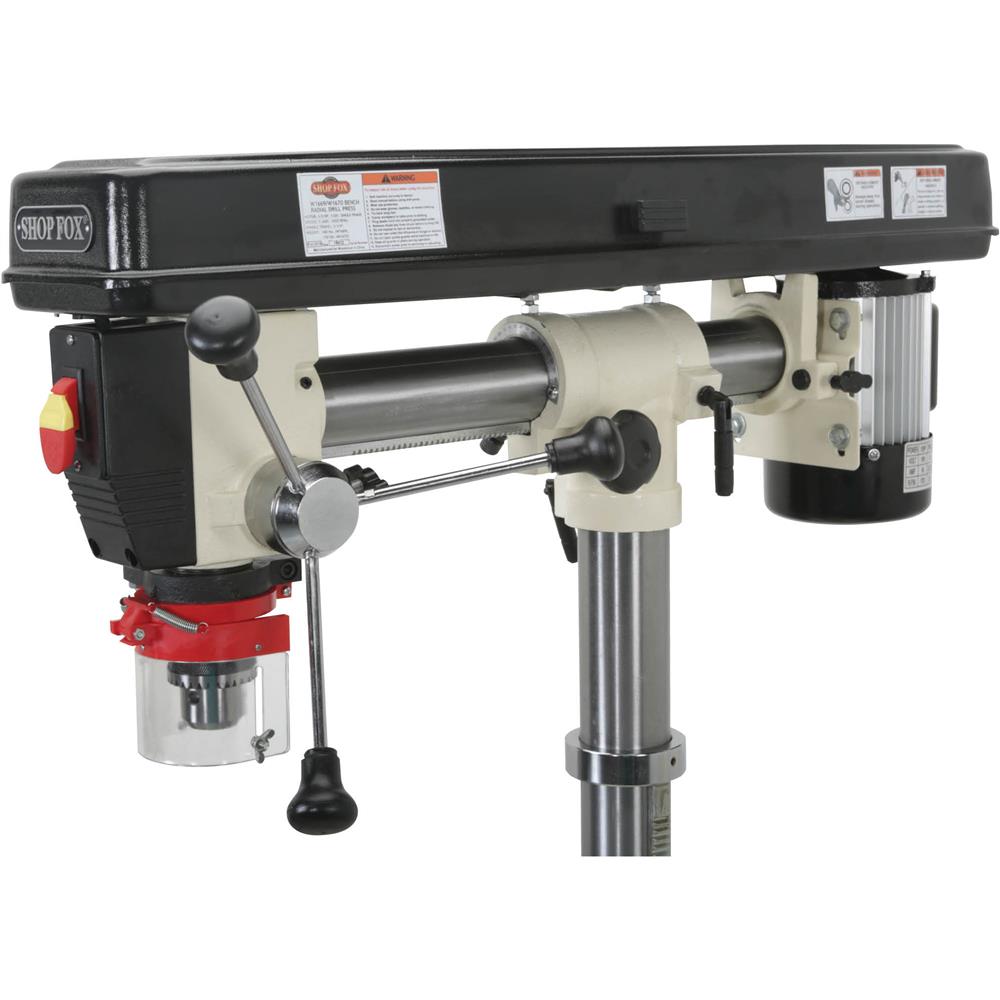

The headstock can be tilted 45° left, 90° right, and slid forward or backward over the column allowing you full adjustability.

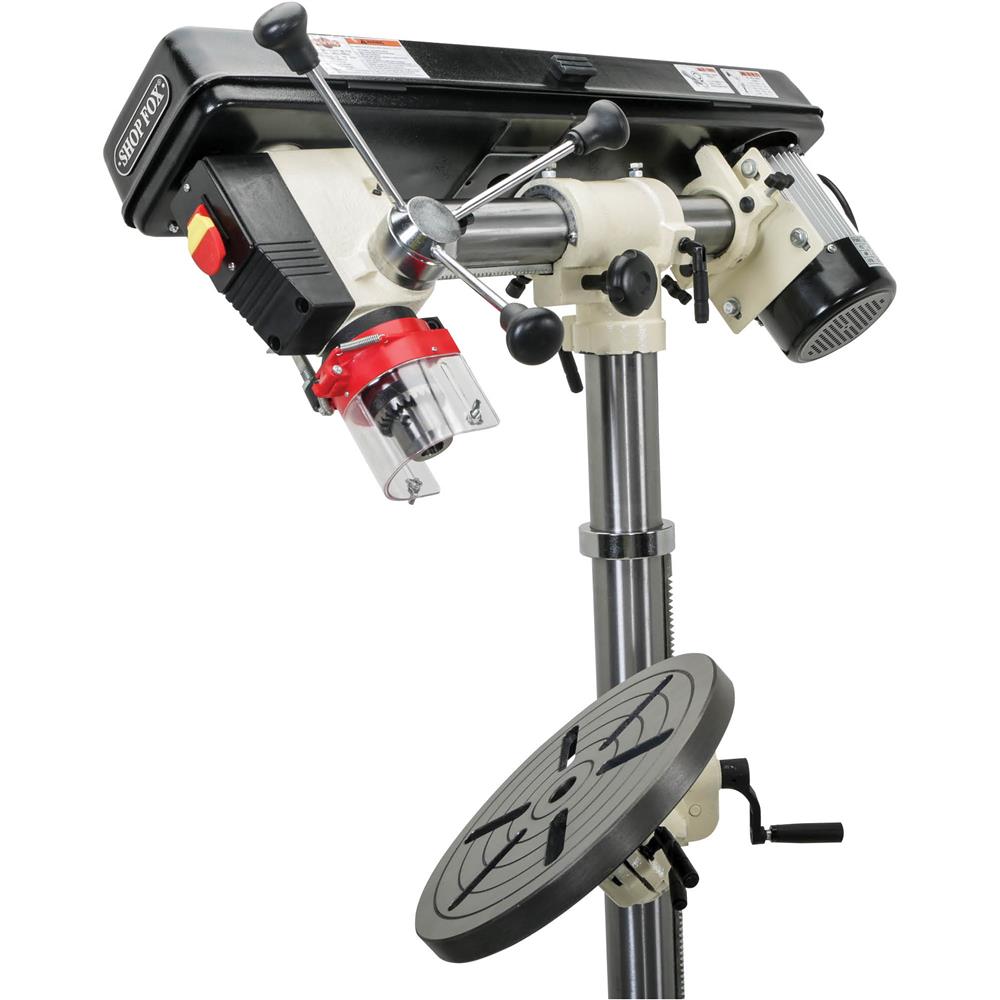

To make sure that you get the best use of the 9-3/4" diameter table, the drill press features rack-and-pinion elevation controls—adjustable 24-1/2" vertically, 90° tilt (left and right), and is capable of 360° rotation around the column.

The W1670 can easily drill holes through plastic, fiberglass, and composites and has a maximum capacity to drill through a half inch of steel without bogging down.

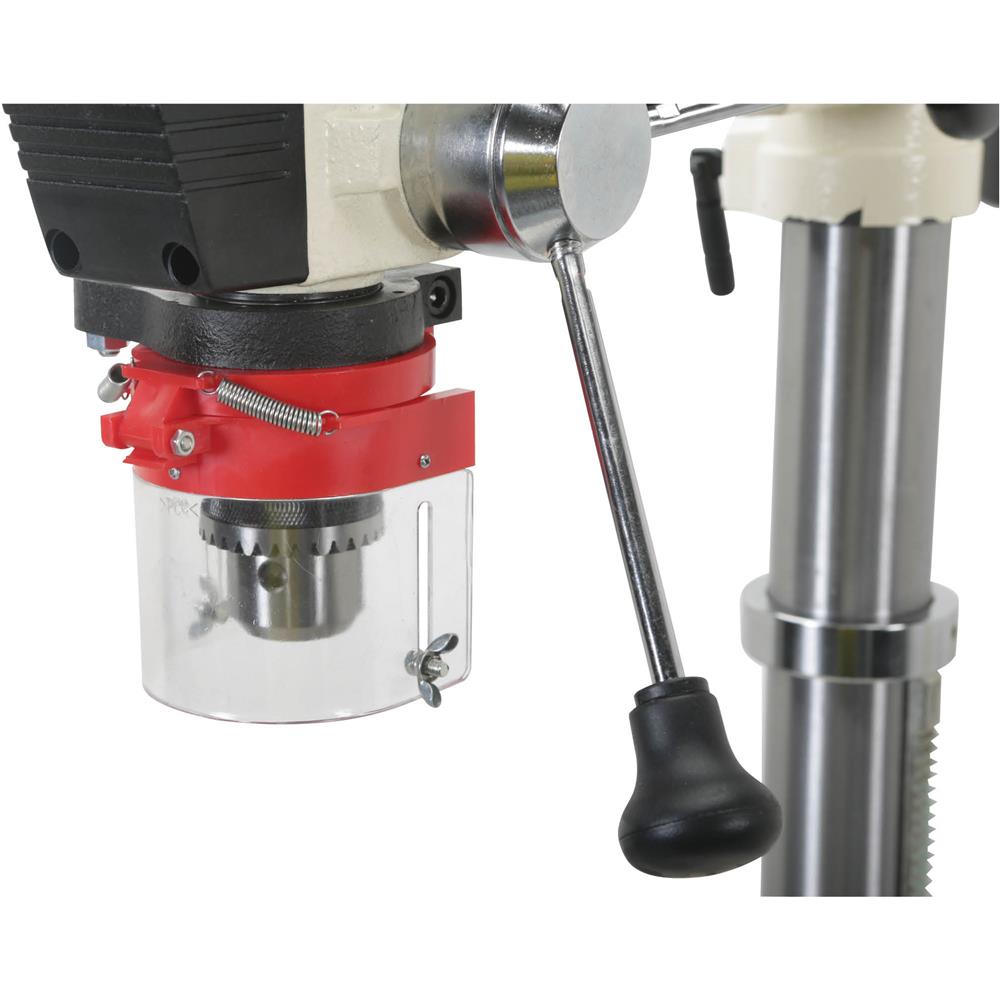

The JT33 keyed drill chuck is fitted to the JT-33 spindle taper and offers up to 3-1/4" of travel. The chuck accepts drill bits from 1/16" to /8". You can set the adjustable threaded depth stop for predetermined and repeatable drilling.

Like all Shop Fox drill presses, the W1670 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1670 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your drill press.

The Shop Fox Customer Service and Technical Support Teams are also U.S.-based. Parts for the drill press may be available online and shipped from the Shop Fox parts warehouse in Springfield, MO.

Made in an ISO 9001 Factory

CSA certified

SPECIFICATIONS:

• Motor: 1/2 HP, single-phase, 120V, 4.7A
• Swing: 34"
• Drill chuck: 1/16"–5/8"
• Drilling capacity: 1/2" mild steel
• Spindle taper: JT-33
• Spindle travel: 3-1/4"
• Number of speeds: 5, 550–3000 RPM
• Column diameter: 2.79"
• Table size: 9-3/4" diameter
• Table swing: 360°
• Table tilt: 90° L/R
• Head tilt: 45° L, 90° R
• Footprint: 11" W x 18" L
• Overall size: 14" W x 32" D x 64-1/2" H
• Approximate shipping weight: 147 lbs.

FEATURES:

• Two-year warranty!!
• Radial design allows angle drilling
• Horizontal sliding headstock
• Threaded depth stop
• Table has lock levers
• Cushioned grip quill handles
• Crank handle operated rack-and-pinion vertical table movement
• Precision-ground cast-iron table
